FDS4435 MOSFET — описание производителя. Даташиты. Основные параметры и характеристики. Поиск аналога. Справочник

Наименование прибора: FDS4435

Тип транзистора: MOSFET

Полярность: P

Максимальная рассеиваемая мощность (Pd): 2.5
W

Предельно допустимое напряжение сток-исток (Uds): 30
V

Предельно допустимое напряжение затвор-исток (Ugs): 25
V

Пороговое напряжение включения Ugs(th): 3
V

Максимально допустимый постоянный ток стока (Id): 8.8
A

Максимальная температура канала (Tj): 175
°C

Общий заряд затвора (Qg): 24
nC

Сопротивление сток-исток открытого транзистора (Rds): 0.02
Ohm

Тип корпуса: SO8

FDS4435
Datasheet (PDF)

Высоковольтный полевой транзистор irfp450. моп, mosfet. свойства, параметры, применение, данные, datasheet. irfp 450

1.1. fds4435bz.pdf Size:225K _fairchild_semi

April 2009
FDS4435BZ
P-Channel PowerTrench MOSFET
-30V, -8.8A, 20m
Features General Description
Max rDS(on) = 20m at VGS = -10V, ID = -8.8A This P-Channel MOSFET is produced using Fairchild
Max rDS(on) = 35m at VGS = -4.5V, ID = -6.7A Semiconductor’s advanced PowerTrench process that has
Extended VGSS range (-25V) for battery applications been especially tailored to minimi

1.2. fds4435.pdf Size:64K _fairchild_semi

October 2001
FDS4435
30V P-Channel PowerTrench MOSFET
General Description Features
This P MOSFET is a rugged gate version of
-Channel
• –8.8 A, –30 V R = 20 mΩ @ V = –10 V
DS(ON) GS
Fairchild Semiconductor’s advanced PowerTrench
R = 35 mΩ @ V = –4.5 V
DS(ON) GS
process. It has been optimized for power management
applications requiring a wide range of gave

1.3. fds4435a.pdf Size:172K _fairchild_semi

October 2001

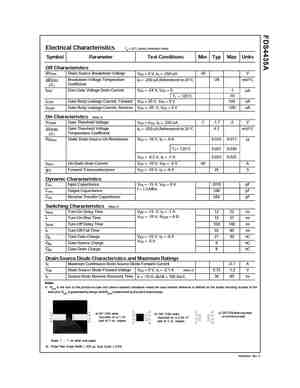

FDS4435A
P-Channel Logic Level PowerTrench MOSFET
General Description
Features
This P-Channel Logic Level MOSFET is produced using • -9 A, -30 V. RDS(ON) = 0.017 W @ VGS = -10 V
Fairchild Semiconductor’s advanced PowerTrench process
RDS(ON) = 0.025 W @ VGS = -4.5 V
that has been especially tailored to minimize the on-state
resistance and yet maintain low gate charg

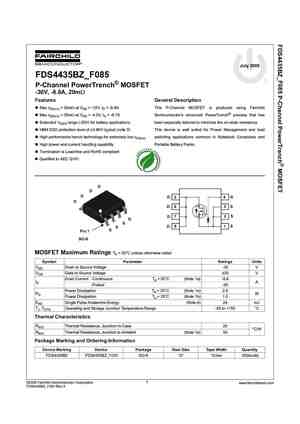

1.4. fds4435bz f085.pdf Size:296K _fairchild_semi

July 2009
FDS4435BZ_F085
P-Channel PowerTrench MOSFET
-30V, -8.8A, 20m
Features General Description
Max rDS(on) = 20m at VGS = -10V, ID = -8.8A This P-Channel MOSFET is produced using Fairchild
Max rDS(on) = 35m at VGS = -4.5V, ID = -6.7A Semiconductor’s advanced PowerTrench process that has
Extended VGSS range (-25V) for battery applications been especially tailored to mi

Другие MOSFET… FDR836P
, FDR838P
, FDR8508P
, FDR856P
, FDR858P
, FDS3570
, FDS3580
, FDS4410
, IRFB3306
, FDS4435A
, FDS4953
, FDS5680
, FDS5690
, FDS6375
, FDS6570A
, FDS6575
, FDS6576
.

FDS4435 Datasheet (PDF)

Irfz44n mosfet. datasheet pdf. equivalent

1.1. fds4435bz.pdf Size:225K _fairchild_semi

1.2. fds4435.pdf Size:64K _fairchild_semi

1.3. fds4435a.pdf Size:172K _fairchild_semi

1.4. fds4435bz f085.pdf Size:296K _fairchild_semi

FDS4435A Datasheet (PDF)

Irf640 mosfet. datasheet pdf. equivalent

1.1. fds4435a.pdf Size:172K _fairchild_semi

3.1. fds4435bz.pdf Size:225K _fairchild_semi

3.2. fds4435.pdf Size:64K _fairchild_semi

3.3. fds4435bz f085.pdf Size:296K _fairchild_semi

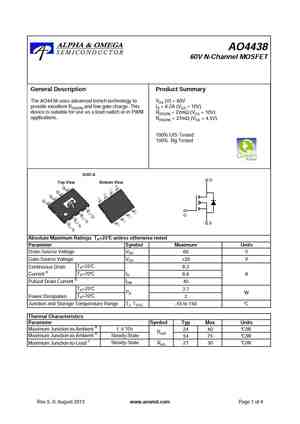

AO4438 Datasheet (PDF)

1.1. ao4438.pdf Size:245K _aosemi

AO4438
60V N-Channel MOSFET
General Description Product Summary
The AO4438 uses advanced trench technology to VDS (V) = 60V
provide excellent RDS(ON) and low gate charge. This ID = 8.2A (VGS = 10V)
device is suitable for use as a load switch or in PWM
RDS(ON) 1.2. ao4438.pdf Size:1233K _kexin

SMD Type MOSFET
N-Channel MOSFET
AO4438 (KO4438)
SOP-8
■ Features
● VDS (V) = 60V
● ID = 8.2 A (VGS = 10V)
● RDS(ON) ＜ 22mΩ (VGS = 10V)
1.50 0.15
● RDS(ON) ＜ 27mΩ (VGS = 4.5V)
1 Source 5 Drain
6 Drain
2 Source
7 Drain
3 Source
8 Drain
4 Gate
D
G
S
■ Absolute Maximum Ratings Ta = 25℃
Parameter Symbol Rating Unit
Drain-Source Voltage VDS 60
V
Gate

5.1. ao4433.pdf Size:185K _update

AO4433
30V P-Channel MOSFET
General Description Product Summary
The AO4433 uses advanced trench technology to VDS (V) = -30V
provide excellent RDS(ON) and ultra-low low gate charge
ID = -11 A (VGS = -20V)
with a 25V gate rating. This device is suitable for use
RDS(ON) 5.2. ao4430.pdf Size:279K _aosemi

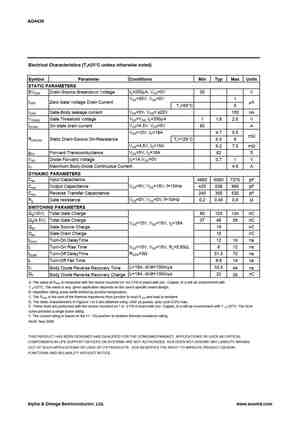

AO4430
N-Channel Enhancement Mode Field Effect Transistor
General Description
Features
The AO4430/L uses advanced trench technology to provide
VDS (V) = 30V
excellent RDS(ON), shoot-through immunity, body diode
