Биполярный транзистор 2SC3694 — описание производителя. Основные параметры. Даташиты.
2SC3694 Datasheet (PDF)
2SC2333 Datasheet (PDF)

2SC2331 Datasheet (PDF)

1.1. 2sc2331.pdf Size:265K _nec

1.2. 2sc2331.pdf Size:99K _savantic

SavantIC Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2331
DESCRIPTION
With TO-220 package
Complement to type 2SA1008
Low collector saturation voltage
Fast switching speed
APPLICATIONS
Switching regulators
DC-DC converters
High frequency power amplifiers
PINNING
PIN DESCRIPTION
1 Base
Collector;connected to
2
mounting base
Fig.1 simpli

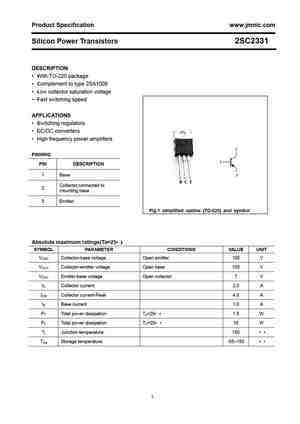

1.3. 2sc2331.pdf Size:45K _jmnic

Product Specification www.jmnic.com
Silicon Power Transistors 2SC2331
DESCRIPTION
·With TO-220 package
·Complement to type 2SA1008
·Low collector saturation voltage
·Fast switching speed
APPLICATIONS
·Switching regulators
·DC/DC converters
·High frequency power amplifiers
PINNING
PIN DESCRIPTION
1 Base
Collector;connected to
2
mounting base
3 Emitter
Fig.1

1.4. 2sc2331.pdf Size:223K _inchange_semiconductor

isc Silicon NPN Power Transistor 2SC2331
DESCRIPTION
·Low Collector Saturation Voltage-
: V = 0.6V(Max.)@ I = 1A
CE(sat) C
·Fast Switching Speed
·Complement to Type 2SA1008
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for use as a driver in devices such as switching
regulators, DC/DC converters, and high-frequency pow

KSC2330A Datasheet (PDF)

Интернет-справочник основных параметров транзисторов. аналоги транзистора tip35c

1.1. ksc2330a.pdf Size:38K _fairchild_semi

KSC2330A
Color TV Chroma Output
• Collector-Base Voltage : VCBO=400V
• Current Gain Bandwidth Product : fT=50MHz (TYP.)
TO-92L
1
1. Emitter 2. Collector 3. Base
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings Ta=25°C unless otherwise noted
Symbol Parameter Ratings Units
VCBO Collector-Base Voltage 400 V
VCEO Collector-Emitter Voltage 400 V
VEBO Emitter-Base Voltage 7

1.2. ksc2330a.pdf Size:50K _samsung

KSC2330A NPN EPITAXIAL SILICON TRANSISTOR
COLOR TV CHROMA OUTPUT
TO-92L
Collector-Base Voltage VCBO=400V
Current Gain-Bandwidth Product fT=50Mhz (TYP)
ABSOLUTE MAXIMUM RATINGS (T =25 )
A
Characteristic Symbol Rating Unit
Collector-Base Voltage VCBO 400 V
Collector-Emitter Voltage VCEO 400 V
Emitter-Base Voltage VEBO 7 V
Collector Current IC 100 mA
Collector Dissipation PC 1 mW
Ju

3.1. ksc2330.pdf Size:37K _fairchild_semi

KSC2330
Color TV Chroma Output
• Collector-Base Voltage : VCBO=300V
• Current Gain Bandwidth Product : fT=50MHz (TYP.)
TO-92L
1
1. Emitter 2. Collector 3. Base
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings Ta=25°C unless otherwise noted
Symbol Parameter Ratings Units
VCBO Collector-Base Voltage 300 V
VCEO Collector-Emitter Voltage 300 V
VEBO Emitter-Base Voltage 7

3.2. ksc2330.pdf Size:50K _samsung

KSC2330 NPN EPITAXIAL SILICON TRANSISTOR
COLOR TV CHROMA OUTPUT
TO-92L
Collector-Base Voltage VCBO=300V
Current Gain-Bandwidth Product fT=50Mhz (TYP)
ABSOLUTE MAXIMUM RATINGS (TA=25 )
Characteristic Symbol Rating Unit
Collector-Base Voltage VCBO 300 V
Collector-Emitter Voltage VCEO 300 V
Emitter-Base Voltage VEBO 7 V
Collector Current IC 100 mA
Collector Dissipation PC 1 mW
Juncti

2SC2336 Datasheet (PDF)

Интернет-справочник основных параметров транзисторов. аналоги транзистора bc817-25

1.1. 2sa1006-a-b 2sc2336-a-b.pdf Size:194K _nec

This Material Copyrighted By Its Respective Manufacturer

1.2. 2sa1006 2sa1006a 2sa1006b 2sc2336 2sc2336a2sc2336b 1.pdf Size:194K _nec

This Material Copyrighted By Its Respective Manufacturer

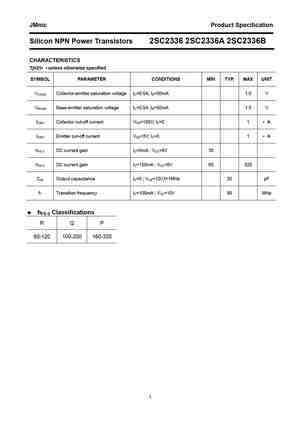

1.3. 2sc2336.pdf Size:196K _jmnic

JMnic Product Specification
Silicon NPN Power Transistors 2SC2336 2SC2336A 2SC2336B
DESCRIPTION
·With TO-220 package
·Complement to type 2SA1006,
2SA1006A,2SA1006B
APPLICATIONS
·Audio frequency power amplifier
·High frequency power amplifier
PINNING
PIN DESCRIPTION
1 Base
Collector;connected to
2
mounting base
Fig.1 simplified outline (TO-220) and symbol
3 Emitte

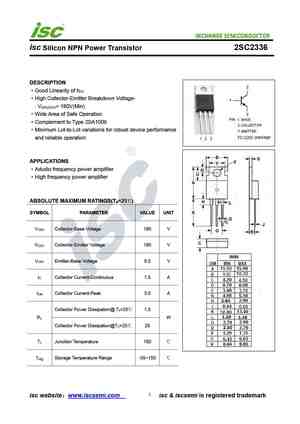

1.4. 2sc2336.pdf Size:198K _inchange_semiconductor

isc Silicon NPN Power Transistor 2SC2336
DESCRIPTION
·Good Linearity of h
FE
·High Collector-Emitter Breakdown Voltage-
: V = 180V(Min)
(BR)CEO
·Wide Area of Safe Operation
·Complement to Type 2SA1006
·Minimum Lot-to-Lot variations for robust device performance
and reliable operation
APPLICATIONS
·Adudio frequency power amplifier
·High frequency power amplifier
ABSOLUTE MAX

1.5. 2sc2336 2sc2336a 2sc2336b.pdf Size:155K _inchange_semiconductor

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2336 2SC2336A 2SC2336B
DESCRIPTION
·With TO-220 package
·Complement to type 2SA1006,
2SA1006A,2SA1006B
APPLICATIONS
·Audio frequency power amplifier
·High frequency power amplifier
PINNING
PIN DESCRIPTION
1 Base
Collector;connected to
2
mounting base
Fig.1 simplified outline (TO-220)

2SC3694 Datasheet (PDF)

Интернет-справочник основных параметров транзисторов. параметры транзистора fqp50n06l

1.1. 2sc3694.pdf Size:27K _jmnic

Power Transistors www.jmnic.com
2SC3694
Silicon NPN Transistors
Features B C E
?With TO-220Fa package
?High speed ,power switching applications
Absolute Maximum Ratings Tc=25?
SYMBOL PARAMETER RATING UNIT
VCBO Collector to base voltage 100 V
VCEO Collector to emitter voltage 60 V
VEBO Emitter to base voltage 5 V
IC Collector current 15 A
PC Collector power dissipation 30 W

1.2. 2sc3694.pdf Size:203K _inchange_semiconductor

isc Silicon NPN Power Transistor 2SC3694
DESCRIPTION
·Low Collector Saturation Voltage
: V = 0.5V(Max)@ I = 12A
CE(sat) C
·Collector-Emitter Sustaining Voltage-
: V = 60V (Min)
CEO(SUS)
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for high speed and power switching applications
ABSOLUTE MAXIMUM RATINGS(T =25℃)
a
S

4.1. 2sc3691.pdf Size:303K _jmnic

Product Specification www.jmnic.com
Silicon NPN Power Transistors 2SC3691
DESCRIPTION ·
·With TO-220Fa package
·Large current ,high speed
·Low saturation voltage
APPLICATIONS
·Designed for high speed and power
switching applications
PINNING
PIN DESCRIPTION
1 Base
2 Collector
3 Emitter
Absolute maximum ratings(Ta=25?)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
VCBO Collec

4.2. 2sc3692.pdf Size:29K _jmnic

Power Transistors www.jmnic.ocm
2SC3692
Silicon NPN Transistors
Features B C E
?With TO-220Fa package
?High speed ,power switching applications
Absolute Maximum Ratings Tc=25?
SYMBOL PARAMETER RATING UNIT
VCBO Collector to base voltage 100 V
VCEO Collector to emitter voltage 60 V
VEBO Emitter to base voltage 5 V
IC Collector current 7 A
PC Collector power dissipation 30 W

4.3. 2sc3693.pdf Size:28K _jmnic

Power Transistors www.jmnic.com
2SC3693
Silicon NPN Transistors
Features B C E
?With TO-220Fa package
?High speed ,power switching applications
Absolute Maximum Ratings Tc=25?
SYMBOL PARAMETER RATING UNIT
VCBO Collector to base voltage 100 V
VCEO Collector to emitter voltage 60 V
VEBO Emitter to base voltage 5 V
IC Collector current 10 A
PC Collector power dissipation 30 W

4.4. 2sc3691.pdf Size:206K _inchange_semiconductor

isc Silicon NPN Power Transistor 2SC3691
DESCRIPTION
·Low Collector Saturation Voltage
: V = 0.5V(Max)@ I = 4A
CE(sat) C
·Collector-Emitter Sustaining Voltage-
: V = 60V (Min)
CEO(SUS)
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for high speed and power switching applications
ABSOLUTE MAXIMUM RATINGS(T =25℃)
a
SY

4.5. 2sc3692.pdf Size:205K _inchange_semiconductor

isc Silicon NPN Power Transistor 2SC3692
DESCRIPTION
·Low Collector Saturation Voltage
: V = 0.5V(Max)@ I = 6A
CE(sat) C
·Collector-Emitter Sustaining Voltage-
: V = 60V (Min)
CEO(SUS)
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for high speed and power switching applications
ABSOLUTE MAXIMUM RATINGS(T =25℃)
a
SY

4.6. 2sc3690.pdf Size:201K _inchange_semiconductor

isc Silicon NPN Power Transistor 2SC3690
DESCRIPTION
·Low Collector Saturation Voltage
: V = 0.5V(Max)@ I = 3A
CE(sat) C
·Collector-Emitter Sustaining Voltage-
: V = 60V (Min)
CEO(SUS)
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for high speed and power switching applications
ABSOLUTE MAXIMUM RATINGS(T =25℃)
a
SY

4.7. 2sc3693.pdf Size:207K _inchange_semiconductor

isc Silicon NPN Power Transistor 2SC3693
DESCRIPTION
·Low Collector Saturation Voltage
: V = 0.5V(Max)@ I = 8A
CE(sat) C
·Collector-Emitter Sustaining Voltage-
: V = 60V (Min)
CEO(SUS)
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for high speed and power switching applications
ABSOLUTE MAXIMUM RATINGS(T =25℃)
a
SY

Характеристики

Основные характеристики
Производитель	Kyocera
Серия	Ecosys
Модель	P2335dnнайти похожий принтер/МФУ
Тип оборудования
Применение
Технология печати
Цвета, использованные в оформлении	Белый, черный
Описание	Принтер лазерный KYOCERA P2335dn (A4, 1200dpi, 256Mb, 35 ppm, дуплекс, USB, Gigabit Ethernet) с дополнительным тонером TK-1200
Поддержка ОС	Windows 10, Windows 8.1, Windows 8, Windows 7, Linux, UNIX, MAC OS X
Комплект поставки и опции
Комплект поставки	Диск с ПО, кабель питания, пробный картриджкомплект №1комплект №2
Интерфейсный USB-кабель	Не входит в комплект поставки
Процессор
Процессор	800 МГц
Конфигурация
Память принтера/МФУ	256 Мб; не расширяется
Интерфейс, разъемы и выходы
Слоты для карт памяти	SDHC, SD
Интерфейс	USB 2.0, RJ-45интерфейсы
Сетевой интерфейс	1 Гбит/сек
Порты	RJ-45, USB 2.0 Type B, USB Type A
Управление бумагой / печатные носители
Формат печатных носителей	A4 (210 x 297 мм), A5 (210 x 148 мм), A6 (4″x6″, 10 x 15 см); пользовательские форматы — от 70 x 148 мм до 216 x 356 мм для многоцелевого лотка и от 105 x 148 мм до 216 x 356 мм для кассеты
Назад ВпередВся подходящая бумага
Формат носителей для двусторонней печати	A4, A5
Кол-во лотков для бумаги (не считая многоцелевой, если он есть)	1
Кол-во приобретаемых отдельно доп. лотков для подачи бумаги	2
Емкость податчика бумаги	250 листов
Емкость многоцелевого лотка/лотка ручной подачи	100 листов
Емкость выходного лотка	250 листов лицевой стороной вниз
Плотность бумаги	60 — 163 г/м2
Плотность бумаги для многоцелевого лотка/ручной подачи	60 — 220 г/м2
Плотность бумаги для двусторонней печати	60 — 163 г/м2
Максимальная плотность бумаги	220 г/м2
Duplex unit (модуль двусторонней печати)
Параметры/функции печати
Время выхода первой страницы	6.8 секунды
Кол-во цветов	1
Разрешение ч/б печати	1200 dpi
Максимальная скорость монохромной печати	35 стр./мин.
Язык описания страниц	PRESCRIBE IIe, эмуляция PCL 6, эмуляция PostScript Level 3
Расходные материалы / заменяемые компоненты
Тип расходных материалов	Тонер+барабан
Тип установки картриджа	Только черный
Картридж черный	TK-1200
Барабан	DK-1150
Ресурс расходных материалов/заменяемых компонентов
Ресурс черного картриджа или контейнера с черными чернилами	3000 страниц; ресурс пробного картриджа из комплекта поставки — 1000 страниц
Прочие характеристики
Уровень шума принтера/МФУ	47.9 дБ при печати
Питание
Питание	От электросети
Блок питания	Встроенный
Потребление энергии	620 Вт при печати; 8 Вт в режиме ожидания; 0.8 Вт в спящем режиме
Потребительские свойства
Время прогрева	15 секунд с момента включения
Опции
Опции (лотки для бумаги)	PF-1100подходящие лотки
Логистика
Размеры (ширина x высота x глубина)	375 x 272 x 393 мм
Вес	14 кг
Размеры упаковки (измерено в НИКСе)	51.1 x 50.02 x 40 см
Вес брутто (измерено в НИКСе)	18.1 кг
Внешние источники информации
Горячая линия производителя	8-800-700-90-04 (звонок бесплатный по России)

2SC2335O Datasheet (PDF)

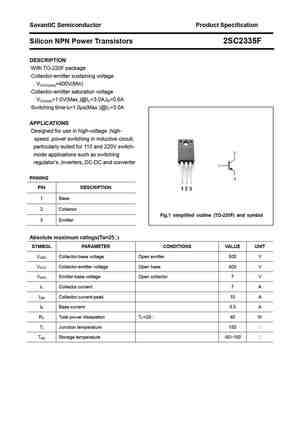

3.1. 2sc2335f.pdf Size:201K _update

SavantIC Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2335F
DESCRIPTION
·With TO-220F package
·Collector-emitter sustaining voltage
VCEO(sus)=400V(Min)
·Collector-emitter saturation voltage
VCE(sat)=1.0V(Max.)@IC=3.0A,IB=0.6A
·Switching time-tf=1.0µs(Max.)@IC=3.0A
APPLICATIONS
·Designed for use in high-voltage ,high-
speed ,power switching

3.2. 2sc2335.pdf Size:118K _nec

DATA SHEET
SILICON POWER TRANSISTOR
2SC2335
NPN SILICON TRIPLE DIFFUSED TRANSISTOR
FOR HIGH-SPEED HIGH-VOLTAGE SWITCHING
The 2SC2335 is a mold power transistor developed for high-speed ORDERING INFORMATION
high-voltage switching, and is ideal for use as a driver in devices such
Part No. Package
as switching regulators, DC/DC converters, and high-frequency power
2SC2335 TO-220AB
amplifier

3.3. 2sc2335.pdf Size:131K _mospec

A
A
A

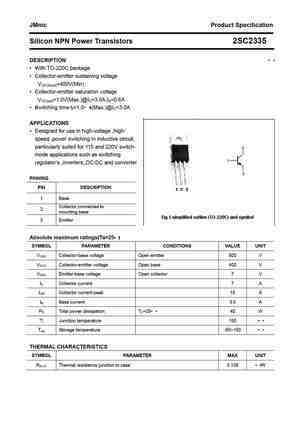

3.4. 2sc2335.pdf Size:205K _jmnic

JMnic Product Specification
Silicon NPN Power Transistors 2SC2335
DESCRIPTION ·
·With TO-220C package
·Collector-emitter sustaining voltage
VCEO(sus)=400V(Min)
·Collector-emitter saturation voltage
VCE(sat)=1.0V(Max.)@IC=3.0A,IB=0.6A
·Switching time-tf=1.0?s(Max.)@IC=3.0A
APPLICATIONS
·Designed for use in high-voltage ,high-
speed ,power switching in inductive circuit

3.5. 2sc2335f.pdf Size:201K _inchange_semiconductor

3.6. 2sc2335.pdf Size:203K _inchange_semiconductor

isc Silicon NPN Power Transistor 2SC2335
DESCRIPTION
·Collector-Emitter Sustaining Voltage-
: V = 400V(Min)
CEO(SUS)
·Collector-Emitter Saturation Voltage-
: V = 1.0V(Max)@ I = 3A, I = 0.6A
CE(sat) C B
·Fast Switching Speed
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for use in high-voltage, high-speed switching in

KSC2330Y Datasheet (PDF)

3.1. ksc2330a.pdf Size:38K _fairchild_semi

3.2. ksc2330.pdf Size:37K _fairchild_semi

3.3. ksc2330a.pdf Size:50K _samsung

3.4. ksc2330.pdf Size:50K _samsung

2SC2335 Datasheet (PDF)

1.1. 2sc2335f.pdf Size:201K _update

1.2. 2sc2335.pdf Size:118K _nec

1.3. 2sc2335.pdf Size:131K _mospec

A
A
A

1.4. 2sc2335.pdf Size:205K _jmnic

1.5. 2sc2335f.pdf Size:201K _inchange_semiconductor

1.6. 2sc2335.pdf Size:203K _inchange_semiconductor

2SC2335F Datasheet (PDF)

1.1. 2sc2335f.pdf Size:201K _update

1.2. 2sc2335f.pdf Size:201K _inchange_semiconductor

3.1. 2sc2335.pdf Size:118K _nec

3.2. 2sc2335.pdf Size:131K _mospec

A
A
A

3.3. 2sc2335.pdf Size:205K _jmnic

3.4. 2sc2335.pdf Size:203K _inchange_semiconductor

2SC2335R Datasheet (PDF)

3.1. 2sc2335f.pdf Size:201K _update

3.2. 2sc2335.pdf Size:118K _nec

3.3. 2sc2335.pdf Size:131K _mospec

A
A
A

3.4. 2sc2335.pdf Size:205K _jmnic

3.5. 2sc2335f.pdf Size:201K _inchange_semiconductor

3.6. 2sc2335.pdf Size:203K _inchange_semiconductor

2SC2335Y Datasheet (PDF)

3.1. 2sc2335f.pdf Size:201K _update

3.2. 2sc2335.pdf Size:118K _nec

3.3. 2sc2335.pdf Size:131K _mospec

A
A
A

3.4. 2sc2335.pdf Size:205K _jmnic

3.5. 2sc2335f.pdf Size:201K _inchange_semiconductor

3.6. 2sc2335.pdf Size:203K _inchange_semiconductor

SI2335DS Datasheet (PDF)

1.1. si2335ds.pdf Size:181K _vishay

Si2335DS
Vishay Siliconix
P-Channel 12-V (D-S) MOSFET
FEATURES
PRODUCT SUMMARY
Halogen-free According to IEC 61249-2-21
VDS (V) RDS(on) (?)ID (A)
Available
0.051 at VGS = — 4.5 V
— 4.0
TrenchFET Power MOSFETs: 1.8 V Rated
0.070 at VGS = — 2.5 V
— 12 — 3.5
0.106 at VGS = — 1.8 V
— 3.0
TO-236
(SOT-23)
G 1
3 D
S 2
Top View
Si2335DS (E5)*
*Marking Code
Ordering Info

1.2. si2335ds-3.pdf Size:1625K _kexin

SMD Type MOSFET
P-Channel Enhancement MOSFET
SI2335DS (KI2335DS)
SOT-23-3
Unit: mm
+0.2
2.9 -0.1
+0.1
■ Features
0.4-0.1
3
● VDS (V) =-12V
● ID =-4.0A (VGS =-4.5V)
● RDS(ON) ＜ 51mΩ (VGS =-4.5V)
1 2
● RDS(ON) ＜ 70mΩ (VGS =-2.5V)
+0.02
+0.1
0.15 -0.02
0.95 -0.1
+0.1
● RDS(ON) ＜ 106mΩ (VGS =-1.8V)
1.9 -0.2
G 1
3 D
1. Gate
S 2
2. Source
3. Drai

1.3. si2335ds.pdf Size:1573K _kexin

SMD Type MOSFET
P-Channel Enhancement MOSFET
SI2335DS (KI2335DS)
SOT-23
Unit: mm
+0.1
■ Features 2.9-0.1
+0.1
0.4 -0.1
● VDS (V) =-12V
3
● ID =-4.0A (VGS =-4.5V)
● RDS(ON) ＜ 51mΩ (VGS =-4.5V)
● RDS(ON) ＜ 70mΩ (VGS =-2.5V)
1 2
+0.1
0.95-0.1
● RDS(ON) ＜ 106mΩ (VGS =-1.8V) 0.1+0.05
-0.01
1.9+0.1
-0.1
G 1
1.Gate
3 D
2.Source
S 2
3.Drain
■ Abso

Результаты подбора транзистора (поиска аналога)

Type	Mat	Struct	Pc	Ucb	Uce	Ueb	Ic	Tj	Hfe	Caps
	Si	NPN	85	700	400	9	9	150	20	TO220
13007T	Si	NPN	80	700	400	9	8	150	20	TO220
2SC2335	Si	NPN	40	500	400	7	7	150	20	TO220
2SC2335O	Si	NPN	40	500	400	7	7	150	30	TO220
2SC2335R	Si	NPN	40	500	400	7	7	150	20	TO220
2SC2335Y	Si	NPN	40	500	400	7	7	150	40	TO220
2SC2427	Si	NPN	40	500		7	7	150	20	TO220
2SC3038	Si	NPN	40	500	400	7	7	150	50	TO220
2SC3039	Si	NPN	50	500	400	7	7	150	30	TO220
2SC3158	Si	NPN	60	500	400	7	7		20	TO220F
2SC3170	Si	NPN	40	500			7	150	25	TO220
2SC3522	Si	NPN	40	500			7	150	40	TO220
2SC3562	Si	NPN	40	500	400		10	150	20	TO220
2SC3563	Si	NPN	40	500	400		10	150	30	TO220
2SC3626	Si	NPN	40	500	400		8	150	55	TO220
2SC4055	Si	NPN	60	600	450	7	8	180	100	TO220
2SC4106M	Si	NPN	50	500	400	7	7	175	20	TO220
2SC4106N	Si	NPN	50	500	400	7	7	175	60	TO220
2SC4107M	Si	NPN	60	500	400	7	10	150	20	TO220
2SC4107N	Si	NPN	60	500	400	7	10	150	60	TO220
2SC4164M	Si	NPN	70	500	400	7	12	150	20	TO220
2SC4164N	Si	NPN	70	500	400	7	12	150	30	TO220
2SC4274	Si	NPN	40	500	400		10	150	40	TO220
2SC4458L	Si	NPN	40	900	500	9	8	150	25	TO220F
2SC4508	Si	NPN	40	500	400	7	10		25	TO220F
2SC4559	Si	NPN	40	500	400		7	175	150	TO220
2SD1162	Si	NPN	40	500		10	10	150	400	TO220
2SD1349	Si	NPN	50	500			7	150	150	TO220
2SD1533	Si	NPN	45	500			7	150	800	TO220
2SD1535	Si	NPN	45	500			7	150	2000	TO220
2SD1710A	Si	NPN	50	900	500	9	8	150	25	TO220
3DD13007B8	Si	NPN	80	700	400	9	8	150	20	TO220AB
3DD13007X1	Si	NPN	80	700	400	9	8	150	20	TO220AB
3DD13007_B8	Si	NPN	80	700	400	9	8	150	20	TO220AB
3DD13007_X1	Si	NPN	80	700	400	9	8	150	20	TO220AB
3DD13009A8	Si	NPN	100	700	400	9	12	150	20	TO220AB
3DD13009C8	Si	NPN	100	700	400	9	12	150	20	TO220AB
3DD13009_A8	Si	NPN	100	700	400	9	12	150	20	TO220AB
3DD13009_C8	Si	NPN	100	700	400	9	12	150	20	TO220AB
3DD13012A8	Si	NPN	100	750	400	10	15	150	20	TO220AB
3DD4206	Si	NPN	75	600	400	9	7	150	20	TO220
3DK3039	Si	NPN	50	500	400	7	7	175	25	TO276AB TO220 TO257
BU810	Si	NPN	75	600	400		7	150	100	TO220
BUD47	Si	NPN	100	850	400		8	150	100	TO220
BUD47A	Si	NPN	100	1000	400		8	150	100	TO220
BUL48	Si	NPN	75	800	400	9	7	150	30	TO220
BUL743	Si	NPN	100	1200	500	15	12	150	24	TO220
BUT12	Si	NPN	100	850	400		8	150	30	TO220
BUT12A	Si	NPN	125	1000	450		8	150	30	TO220
BUT54	Si	NPN	100	800	430		8	150	20	TO220
CSC2335	Si	NPN	40	500	400	7	7	150	20	TO220
ECG379	Si	NPN	100	700	400		12	175	20	TO220
HMJE13007	Si	NPN	80	700	400	9	8	150	25	TO220AB
KSC2335	Si	NPN	40	500	400	7	7	150	20	TO220
KSC2335O	Si	NPN	40	500	400	7	7	150	30	TO220
KSC2335R	Si	NPN	40	500	400	7	7	150	20	TO220
KSC2335Y	Si	NPN	40	500	400	7	7	150	40	TO220
KSC3158	Si	NPN	40	500	400	7	7	150	20	TO220
KSC3158O	Si	NPN	40	500	400	7	7	150	30	TO220
KSC3158R	Si	NPN	40	500	400	7	7	150	20	TO220
KSC3158Y	Si	NPN	40	500	400	7	7	150	40	TO220
KSC5032	Si	NPN	80	500	400	7	8	150	50	TO220
KSD5742	Si	NPN	80		400	8	8	150	200	TO220
MJ10012T	Si	NPN	65	600	400	8	10	150	100	TO220
MJE13009D	Si	NPN	100	700	400	9	12	150	40	TO220
MJE13009K	Si	NPN	80	700	400	9	12	150	40	TO3P TO220
MJE13009P	Si	NPN	80	700	400	9	12	150	40	TO3P TO220
MJE5742	Si	NPN	80	800	400	8	8	150	200	TO220
MJE5742G	Si	NPN	100		400	8	8	150	50	TO220AB
SGSD00020	Si	NPN	70	650	400		8	175	1000	TO220
SGSF341	Si	NPN	85	850	400		10	175		TO220
SGSF343	Si	NPN	85	1000	450		8	175		TO220
SGSF344	Si	NPN	85	1200	600		7	175		TO220
SM2175	Si	NPN	60		400		15	200	200	TO220
TT2194	Si	NPN	50	500	400	7	12	150	20	TO220
WBP3308	Si	NPN	45	900	500	7	7	150	20	TO220

Всего результатов: 76

Биполярный транзистор 2SC3694 — описание производителя. Основные параметры. Даташиты.

Наименование производителя: 2SC3694

Тип материала: Si

Полярность: NPN

Максимальная рассеиваемая мощность (Pc): 30
W

Макcимально допустимое напряжение коллектор-база (Ucb): 100
V

Макcимальный постоянный ток коллектора (Ic): 15
A

Предельная температура PN-перехода (Tj): 125
°C

Статический коэффициент передачи тока (hfe): 30

Корпус транзистора: TO220

2SC3694
Datasheet (PDF)

1.1. 2sc3694.pdf Size:27K _jmnic

1.2. 2sc3694.pdf Size:203K _inchange_semiconductor

4.1. 2sc3691.pdf Size:303K _jmnic

4.2. 2sc3692.pdf Size:29K _jmnic

4.3. 2sc3693.pdf Size:28K _jmnic

4.4. 2sc3691.pdf Size:206K _inchange_semiconductor

4.5. 2sc3692.pdf Size:205K _inchange_semiconductor

4.6. 2sc3690.pdf Size:201K _inchange_semiconductor

4.7. 2sc3693.pdf Size:207K _inchange_semiconductor

Другие транзисторы… 2SC3687
, 2SC3688
, 2SC3689
, 2SC369
, 2SC3690
, 2SC3691
, 2SC3692
, 2SC3693
, S8050
, 2SC3695
, 2SC3696
, 2SC3697
, 2SC3698
, 2SC3699
, 2SC369G
, 2SC369GB
, 2SC369GG
.

2SC2333 Datasheet (PDF)

1.1. 2sc2333.pdf Size:164K _nec

1.2. 2sc2333.pdf Size:158K _savantic

SavantIC Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2333
DESCRIPTION
With TO-220C package
High speed switching
Low collector saturation voltage
APPLICATIONS
Switching regulator
DC-DC converter
Ultrasonic appliance
PINNING
PIN DESCRIPTION
1 Base
Collector;connected to
2
mounting base
3 Emitter
Absolute maximum ratings(Ta=25 )
SYMBOL

1.3. 2sc2333.pdf Size:248K _jmnic

JMnic Product Specification
Silicon NPN Power Transistors 2SC2333
DESCRIPTION ·
·With TO-220C package
·High speed switching
·Low collector saturation voltage
APPLICATIONS
·Switching regulator
·DC-DC converter
·Ultrasonic appliance
PINNING
PIN DESCRIPTION
1 Base
Collector;connected to
2
mounting base
3 Emitter
Absolute maximum ratings(Ta=25?)
SYMBOL PARAMETER

1.4. 2sc2333.pdf Size:221K _inchange_semiconductor

isc Silicon NPN Power Transistor 2SC2333
DESCRIPTION
·Collector-Emitter Sustaining Voltage-
:V = 400V(Min)
CEO(SUS)
·High Speed Switching
·Low Collector Saturation Voltage
·Wide Area of Safe Operation
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for switching regulator, DC-DC converter and
ultrasonic appliance appli
