Транзистор irfp260n

IRFB260N Datasheet (PDF)

1.1. irfb260npbf.pdf Size:170K _upd-mosfet

PD — 95473
SMPS MOSFET
IRFB260NPbF
HEXFET Power MOSFET
Applications
VDSS RDS(on) max ID
l High frequency DC-DC converters
200V 0.040Ω 56A
l Lead-Free
Benefits
l Low Gate-to-Drain Charge to Reduce Switching Losses
l Fully Characterized Capacitance Including Effective COSS to
Simplify Design, (See App. Note AN1001)
l Fully Characterized Avalanche Voltage and Current
TO-220AB
Ab

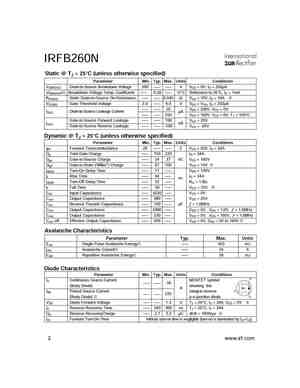

1.2. irfb260n.pdf Size:90K _international_rectifier

PD — 94270
SMPS MOSFET
IRFB260N
HEXFET Power MOSFET
Applications
VDSS RDS(on) max ID
High frequency DC-DC converters
200V 0.040? 56A
Benefits
Low Gate-to-Drain Charge to Reduce Switching Losses
Fully Characterized Capacitance Including Effective COSS to
Simplify Design, (See App. Note AN1001)
Fully Characterized Avalanche Voltage and Current
TO-220AB
Absolute Maximum Ratings
Pa

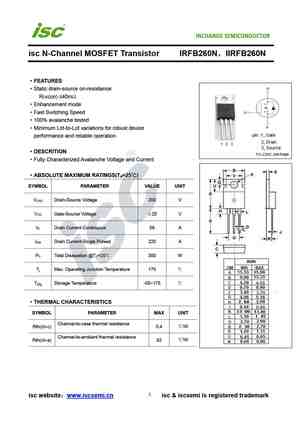

 1.3. irfb260n.pdf Size:245K _inchange_semiconductor

isc N-Channel MOSFET Transistor IRFB260N，IIRFB260N
·FEATURES
·Static drain-source on-resistance:
RDS(on) ≤40mΩ
·Enhancement mode
·Fast Switching Speed
·100% avalanche tested
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
·DESCRITION
·Fully Characterized Avalanche Voltage and Current
·ABSOLUTE MAXIMUM RATINGS(T =25℃)
a
SYMBOL PAR

IRFB260N MOSFET — описание производителя. Даташиты. Основные параметры и характеристики. Поиск аналога. Справочник

Наименование прибора: IRFB260N

Тип транзистора: MOSFET

Полярность: N

Максимальная рассеиваемая мощность (Pd): 380
W

Предельно допустимое напряжение сток-исток (Uds): 200
V

Предельно допустимое напряжение затвор-исток (Ugs): 20
V

Максимально допустимый постоянный ток стока (Id): 56
A

Общий заряд затвора (Qg): 150
nC

Сопротивление сток-исток открытого транзистора (Rds): 0.04
Ohm

Тип корпуса: TO220AB

IRFB260N
Datasheet (PDF)

1.1. irfb260npbf.pdf Size:170K _upd-mosfet

PD — 95473
SMPS MOSFET
IRFB260NPbF
HEXFET Power MOSFET
Applications
VDSS RDS(on) max ID
l High frequency DC-DC converters
200V 0.040Ω 56A
l Lead-Free
Benefits
l Low Gate-to-Drain Charge to Reduce Switching Losses
l Fully Characterized Capacitance Including Effective COSS to
Simplify Design, (See App. Note AN1001)
l Fully Characterized Avalanche Voltage and Current
TO-220AB
Ab

1.2. irfb260n.pdf Size:90K _international_rectifier

PD — 94270
SMPS MOSFET
IRFB260N
HEXFET Power MOSFET
Applications
VDSS RDS(on) max ID
High frequency DC-DC converters
200V 0.040? 56A
Benefits
Low Gate-to-Drain Charge to Reduce Switching Losses
Fully Characterized Capacitance Including Effective COSS to
Simplify Design, (See App. Note AN1001)
Fully Characterized Avalanche Voltage and Current
TO-220AB
Absolute Maximum Ratings
Pa

 1.3. irfb260n.pdf Size:245K _inchange_semiconductor

isc N-Channel MOSFET Transistor IRFB260N，IIRFB260N
·FEATURES
·Static drain-source on-resistance:
RDS(on) ≤40mΩ
·Enhancement mode
·Fast Switching Speed
·100% avalanche tested
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
·DESCRITION
·Fully Characterized Avalanche Voltage and Current
·ABSOLUTE MAXIMUM RATINGS(T =25℃)
a
SYMBOL PAR
