GT100-6 Datasheet (PDF)
5.1. vs-gt100na120ux.pdf Size:172K _igbt
VS-GT100NA120UX
www.vishay.com
Vishay Semiconductors
“High Side Chopper” IGBT SOT-227
(Trench IGBT), 100 A
FEATURES
• Trench IGBT technology
• Very low VCE(on)
• Square RBSOA
• HEXFRED clamping diode
• 10 µs short circuit capability
• Fully isolated package
SOT-227
• Very low internal inductance ( 5 nH typical)
• Industry standard outline
• UL approved
5.2. vs-gt100la120ux.pdf Size:172K _igbt
VS-GT100LA120UX
www.vishay.com
Vishay Semiconductors
“Low Side Chopper” IGBT SOT-227
(Trench IGBT), 100 A
FEATURES
• Trench IGBT technology
• Very low VCE(on)
• Square RBSOA
• HEXFRED clamping diode
• 10 µs short circuit capability
• Fully isolated package
SOT-227
• Very low internal inductance ( 5 nH typical)
• Industry standard outline
• UL approved
5.3. vs-gt100tp60n.pdf Size:181K _igbt
VS-GT100TP60N
www.vishay.com
Vishay Semiconductors
Half Bridge IGBT Power Module, 600 V, 100 A
FEATURES
• Low VCE(on) trench IGBT technology
• 5 µs short circuit capability
• VCE(on) with positive temperature coefficient
• Maximum junction temperature 175 °C
• Low inductance case
• Fast and soft reverse recovery antiparallel FWD
• Isolated copper baseplate using DCB (
5.4. vs-gt100tp120n.pdf Size:184K _igbt
VS-GT100TP120N
www.vishay.com
Vishay Semiconductors
Half Bridge IGBT Power Module, 1200 V, 100 A
FEATURES
• Low VCE(sat) trench IGBT technology
• 10 µs short circuit capability
• VCE(sat) with positive temperature coefficient
• Maximum junction temperature 175 °C
• Low inductance case
• Fast and soft reverse recovery antiparallel FWD
• Isolated copper baseplate using
5.5. aptgt100a170d1.pdf Size:185K _apt
APTGT100A170D1
VCES = 1700V
Phase leg
IC = 100A @ Tc = 80°C
Trench IGBT Power Module
Application
• Welding converters
3
Q1
• Switched Mode Power Supplies
• Uninterruptible Power Supplies
4
• Motor control
5
Features
1
Q2
• Trench + Field Stop IGBT Technology
— Low voltage drop
6
— Low tail current
— Switching frequency up to 20 kHz
7
— Soft r
5.6. aptgt100sk120d1.pdf Size:185K _apt
APTGT100SK120D1
VCES = 1200V
Buck chopper
IC = 100A @ Tc = 80°C
Trench IGBT Power Module
Application
• AC and DC motor control
3
Q1
• Switched Mode Power Supplies
4
Features
• Trench + Field Stop IGBT Technology
5
— Low voltage drop
1
— Low tail current
— Switching frequency up to 20 kHz
— Soft recovery parallel diodes
— Low diode VF
— Low leakage
5.7. aptgt100sk170d1.pdf Size:185K _apt
APTGT100SK170D1
VCES = 1700V
Buck chopper
IC = 100A @ Tc = 80°C
Trench IGBT Power Module
Application
3 • AC and DC motor control
Q1
• Switched Mode Power Supplies
4
Features
• Trench + Field Stop IGBT Technology
5
1 — Low voltage drop
— Low tail current
— Switching frequency up to 20 kHz
— Soft recovery parallel diodes
— Low diode VF
2 — Low leakage c
5.8. aptgt100x120te3.pdf Size:232K _apt
APTGT100X120TE3
VCES = 1200V
3 Phase bridge
IC = 100A @ Tc = 80°C
Trench IGBT Power Module
Application
• AC Motor control
Features
• Trench + Field Stop IGBT Technology
— Low voltage drop
— Low tail current
— Switching frequency up to 20 kHz
— Soft recovery parallel diodes
— Low diode VF
— Low leakage current
— Avalanche energy rated
— RBSOA and SCSOA ra
5.9. aptgt100da120d1.pdf Size:185K _apt
APTGT100DA120D1
VCES = 1200V
Boost chopper
IC = 100A @ Tc = 80°C
Trench IGBT Power Module
Application
• AC and DC motor control
3
• Switched Mode Power Supplies
• Power Factor Correction
Features
1 • Trench + Field Stop IGBT Technology
Q2
— Low voltage drop
6
— Low tail current
— Switching frequency up to 20 kHz
— Soft recovery parallel diodes
7
—
5.10. aptgt100a120d1.pdf Size:185K _apt
APTGT100A120D1
VCES = 1200V
Phase Leg
IC = 100A @ Tc = 80°C
Trench IGBT Power Module
Application
• Welding converters
3
Q1
• Switched Mode Power Supplies
4
• Uninterruptible Power Supplies
• Motor control
5
Features
1
Q2
• Trench + Field Stop IGBT Technology
6
— Low voltage drop
— Low tail current
— Switching frequency up to 20 kHz
7
— Soft r
5.11. aptgt100da170d1.pdf Size:185K _apt
APTGT100DA170D1
VCES = 1700V
Boost chopper
IC = 100A @ Tc = 80°C
Trench IGBT Power Module
Application
3 • AC and DC motor control
• Switched Mode Power Supplies
• Power Factor Correction
Features
1
• Trench + Field Stop IGBT Technology
Q2
— Low voltage drop
6
— Low tail current
— Switching frequency up to 20 kHz
— Soft recovery parallel diodes
7
2
5.12. aptgt100x120e3.pdf Size:225K _apt

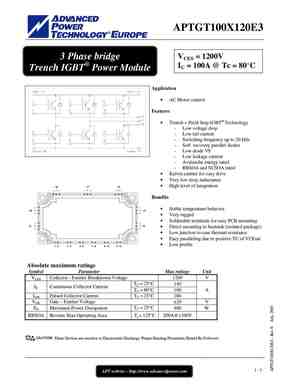

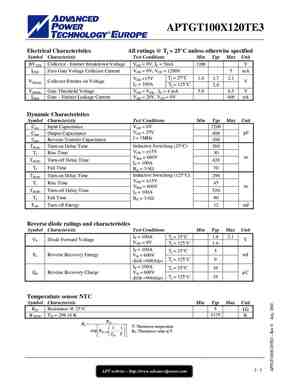

APTGT100X120E3
VCES = 1200V
3 Phase bridge
IC = 100A @ Tc = 80°C
Trench IGBT Power Module
Application
• AC Motor control
Features
• Trench + Field Stop IGBT Technology
— Low voltage drop
— Low tail current
— Switching frequency up to 20 kHz
— Soft recovery parallel diodes
— Low diode VF
— Low leakage current
— Avalanche energy rated
— RBSOA and SCSOA rat
